Safty products Chinese ISO EPA new design 5T Diesel Forklift

Fuel Type: Diessl

Side Shift: Yes

Capacity : 5000KG

Lift Height：6000MM

Custom：Yes

Additional Info : Warehouse - 4x2 Model

Truck Warranty : 1000 HRS or 1 Years truck warranty : Subject to status.

Quantity :

add to cart

Contact Now

Specification Parameter

Diesel forklift parameters
Name		CPC50
Fuel type		Diesel
Load capacity	kg	5000
Load center	mm	500
Lifting height	mm	3000
Fork size	mm	*107015050*
Door trame angle	Deg.	6/12
Min turning radius	mm	2680
Ground clearance	mm	135
Height of overhead guard from ground	mm	2210
Front overhang	mm	495
Max travel speed fully loaded	km/h	22
Max lifting speed with full load	mm/s	330
Max traction fully loaded	KN	18.5
Max climb angle	%	20
Full length with forks	mm	4195
Full length without forks	mm	2975
Full width	mm	1380
Overall lifting height of mast	mm	4250
Door frame closed height	mm	2185
Front tire		300-15-18PR
Rear tire		700-12-10PR
Wheelbase	mm	1960
Wheel distance	mm	1000/970
Total Weight	kg	5300
Battery	V/Ah	12/80
Engine model		Xinchai4D32G31
Rated power	kw/r.p.m	48
Gearbox		Mechanical/Hydraulic
Work power	Mpa	18.5

Model H50: Detailed specifications and features of a high-performance integrated rough terrain forklift truck

The CPC50 diesel forklifts offers robust performance with a high load capacity of 5,000 kg and a load center of 500 mm, making it suitable for heavy-duty tasks. This model, part of our new forklifts range, is equipped with a Xinchai 4D32G31 engine delivering 48 kW power, ensuring efficient operations with a maximum travel speed of 22 km/h when fully loaded. The forklift has a lifting height of 3,000 mm and features substantial fork dimensions of 1070 mm length, 150 mm width, and 50 mm thickness. As an outdoor forklift, the mast can extend to an overall lifting height of 4,250 mm and folds to a compact height of 2,185 mm when not in use. Designed for maneuverability, it has a minimum turning radius of 2,680 mm and maintains a ground clearance of 135 mm. This internal combustion forklifts has robust tires, 300-15-18PR in the front and 700-12-10PR in the rear, supporting its stable movement across diverse terrains. The CPC50, including the 3 ton forklift models, features mechanical and hydraulic gearbox options and operates at a working pressure of 18.5 Mpa. With a total weight of 5,300 kg and dimensions that balance functionality and space efficiency, the CPC50 is a reliable choice for demanding industrial environments.

Wide field of vision door frame optimized design of hydraulic pipe layout and thick and firm strip-shaped top guard frame design. Maximize the safety of operators at the same time. To ensure excellent operation vision

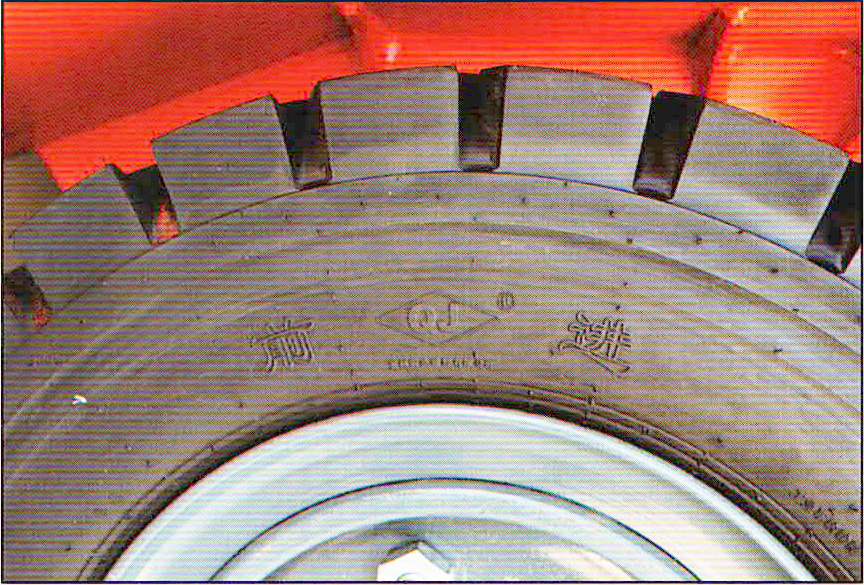

New electronic instrument	Branded tires are standard on the entire vehicle


The vehicle lamps and lanterns are all LED. High brightness and long service lift	The rear axle adopts rubber shock absorption technology to increase buffering and extend the service life of the rear axle


Using Oil-liquid separation heat dissipation design,effectively solve the vehicle continuous use of high temperature problem.	Equipped with new Chaiguo three engine green power strong low fuel consumption characteristics

Main Features

.High strength 20 mn silicon steel door frame-----with high tensile strength,enough toughness, good weldability and formability.

.All-robot welding-----looks very nice and consistent.

.Wide view mast-----better view ensures operation safety

.New adjusting mechanism of steering wheel-----with ergonomic design,making driving more comfortable and convenient.

.Reliable special meters-----reasonable structure and better view,Alarm indicator lights to make monitoring of the truck condition easier.

.Environment-friendly design and easy maintenance-----Euro V emission standards are more environmentally friendly, the hood opening angle is increased to facilitate maintenance.

Market

IVITAL GROUP produced and exported to many countries, such as Turkey, Australia,Canada,USA, Japan, Spain, Russia, India, Indonesia, Malaysia, etc..
