Model No: 3 ton、5 ton

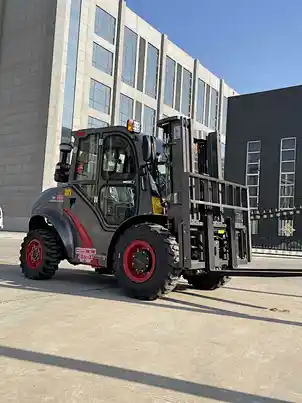

High Quality Ready to ship Chinese factory cheap price 3T/5T Compact Off-road Diesel Forklift
Fuel Type: Diessl
Side Shift: Yes
Capacity : 3000KG/5000KG
Lift Height：6000MM
Custom：Yes
Additional Info : All Terrain - compactness - 4x4 Model - Outdoor
Truck Warranty : 1000 HRS or 1 Years truck warranty : Subject to status.
Side Shift: Yes
Capacity : 3000KG/5000KG
Lift Height：6000MM
Custom：Yes
Additional Info : All Terrain - compactness - 4x4 Model - Outdoor
Truck Warranty : 1000 HRS or 1 Years truck warranty : Subject to status.
Quantity :
Powerful and Efficient
H30 and H50 diesel-powered forklift trucks have high-performance diesel engines with excellent power output and fuel efficiency. The H30 model is fitted with the Yunnei YN4EZ080-30CR engine with 61.8 kW, while the H50 model is equipped with the Yuchai YCDV394FTZ-50 engine with 40 kW. Both forklifts are designed with large-capacity fuel tanks - 70 liters for the H30 and 110 liters for the H50 - to ensure long-time operating capability.
Optimized Design and Operational Performance
Both forklifts offer excellent maneuverability and safety, with front and rear wheel spacing of 1150/1200 mm (H30) and 1550/1580 mm (H50) to enhance vehicle stability. The H30 and H50 are equipped with an air-operated foot-operated service brake and manual parking brake system to provide reliable safety. Lifting and lowering speeds are optimized for fast-paced work environments.
Efficient Lifting and Flexibility
The H30 model has a lifting speed of 310 mm/s when fully loaded and 430 mm/s unloaded, while the H50 model has a lifting speed of 280 mm/s when fully loaded and 350 mm/s unloaded. The H30 has a maximum lift of 4,150 mm, while the H50 offers up to 4,850 mm of lifting capacity in a wide range of height options to meet work scenarios with different height requirements.
Dimensions and additional features
The H30 and H50 have an overall length (without forklift) of 3060 mm and 3510 mm, a width of 1460 mm and 1800 mm, and a height of 4950 mm and 5290 mm when fully lifted. These dimensional parameters ensure that forklift trucks offer great functionality, good spatial adaptability, and a comfortable operating environment.
Specification Parameter
| Dimensions and parameters of integrated off-road forklift | |||||
| Model | Unit | H30 | H50 | ||
| Power form | Diesel | Diessl | |||
| Rated lifting capacity | kg | 3000 | 5000 | ||
| Load center distance | mm | 500 | 500 | ||
| Max lift height | mm | 4150 | 320041004850 | ||
| Mast inclination angle (front/rear) | Deg | 6/12 | 6/12 | ||
| Wheelbase | mm | 2050 | 2160 | ||
| Wheel distance (front/rear) | mm | 1150/1200 | 1550/1580 | ||
| service brake | Air pressure-pedal type | Air pressure-pedal type | |||
| parking brake | Air pressure-manual | Air pressure-manual | |||
| Lift speed (full load/no load) | mm/s | 310/430 | 280/350 | ||
| Descending speed (full load/no load) | mm/s | 490/305 | 570/560 | ||
| Travel speed (full load/unloaded) | km/h | 35/40 | 21/27 | ||
| Max grade climb (full load) | % | 40 | 40 | ||
| Engine | Model | YN4EZ080-30CR | YCDV394FTZ-50 | ||
| Manufacturer | Yunnei | Yuchai | |||
| Rated power | kw | 61.8/2400 | 40/2400 | ||
| Diesel tank capacity | —— | L | 70 | 110 | |
| Battery | Voltage | V | 24 | 24 | |
| Capacity | Ah | 65x2 | 65x2 | ||
| Gearbox | Transmission form | Hydraulic | Hydraulic | ||
| Gear position (front/rear) | Ⅱ/Ⅱ | Ⅱ/Ⅱ | |||
Tire | Model | Front wheel | 12-16.5NHS | 12-16.5NHS | |
| Rear wheel | 7.0-12NHS | 250-15NHS | |||
| weight | kg | 4580 | 7380 | ||
| free lift height | mm | 1050 | 1440 | ||
| Fork size | Thickness×width×length | mm | 50×122×1220 | 60×150×1370 | |
| Dimensions | Full length (without forks) | mm | 3060 | 3510 | |
| Full width | mm | 1460 | 1800 | ||
| Full height | raise mast | mm | 4950 | 5290 | |
| unraise mast | mm | 2080 | 241021602410 | ||
| overhead guard | mm | 2080 | 2150 | ||
| Min turn radius | mm | 2800 | 3900 | ||
| minground clearance | Door frame | mm | 270 | 260 | |
| midpoint of wheelbase | mm | 300 | 260 | ||
Main Features
.Economical and fuel-efficient-----Under the same working conditions, it is more fuel-efficient than previous products.
.Powerful----- The diesel atomization effect is good, the combustion is very complete, the power output is large, and the working efficiency is high.
Environmental friendly-----The use of electronically controlled high-voltage common rail technology ensures precise combustion, no smoke visible to the naked eye, and lower harmful gas emissions.
.Less noise-----Accurate and complete combustion, effectively avoiding deflagration and knocking problems
. High reliability.-----The whole machine passed the 1,500-hour reliability assessment.
.Easy to maintain-----The accessories are highly versatile and the complete machine has a large market share.
.Powerful----- The diesel atomization effect is good, the combustion is very complete, the power output is large, and the working efficiency is high.
Environmental friendly-----The use of electronically controlled high-voltage common rail technology ensures precise combustion, no smoke visible to the naked eye, and lower harmful gas emissions.
.Less noise-----Accurate and complete combustion, effectively avoiding deflagration and knocking problems
. High reliability.-----The whole machine passed the 1,500-hour reliability assessment.
.Easy to maintain-----The accessories are highly versatile and the complete machine has a large market share.
