Model No: 2 ton、3 ton、5 ton

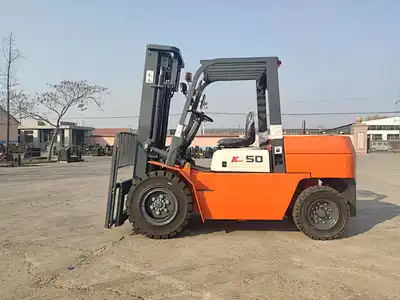

Good quality Competitive price Best Seller 2T/3T/5T Outdoor container handling Internal combustion counterbalanced forklift
Fuel Type: Diessl
Side Shift: Yes
Capacity : 2000KG / 3000KG / 5000KG
Lift Height：6000MM
Custom：Yes
Additional Info : Outdoor - compactness - 4x2 Model - stacking and short distance transport.
Truck Warranty : 1000 HRS or 1 Years truck warranty : Subject to status.
Side Shift: Yes
Capacity : 2000KG / 3000KG / 5000KG
Lift Height：6000MM
Custom：Yes
Additional Info : Outdoor - compactness - 4x2 Model - stacking and short distance transport.
Truck Warranty : 1000 HRS or 1 Years truck warranty : Subject to status.
Quantity :
Powerful and Efficient
Xinchai diesel engines power the CPC series forklift trucks for high power output. The CPC20 and CPC30 are equipped with 36.8 kW Xinchai 4D27G31 engines, while the CPC50 is equipped with an even more powerful 48 kW Xinchai 4D32G31 engine. All three diesel forklifts utilize a mechanical/hydraulic drivetrain to ensure superior operational performance and reliability.
Design Optimization and Operational Efficiency
The CPC20, CPC30, and CPC50 focus on ease of operation and efficiency. The maximum travel speeds of these forklifts are 19km/h, 19km/h, and 22km/h, respectively, when fully loaded. Fast lifting speeds of up to 550 mm/sec, 480 mm/sec, and 330 mm/sec significantly increase operational efficiency.
Compactness and maneuverability
The three forklift trucks have excellent maneuverability, with minimum steering radii of 2,220 mm, 2,400 mm, and 2,680 mm, respectively, adapting to various operating environments. The trucks have a compact design with overall lengths (excluding forklifts) of 2,453 mm, 2,750 mm, and 2,975 mm, respectively, making it easy to operate flexibly in narrow spaces. These features make them ideal as small outdoor forklifts for tight areas.
Safety and Comfort
The three forklifts are designed with operator safety and comfort in mind, with a high level of roof protection from the ground of 2,140 mm, 2,165 mm, and 2,210 mm, respectively, providing plenty of protection space. Meanwhile, the forklift trucks have ground clearance of 120 mm, 135 mm, and 135 mm, respectively, ensuring safe driving on uneven ground.
Durability and Adaptability
CPC series forklift trucks have good adaptability and durability and can operate stably at a maximum climbing angle of 20%. The well-designed wheelbase provides enough stability and support to perform well in indoor and outdoor operating environments. As a leading forklift manufacturer, we ensure that our products meet the highest standards of quality and reliability.
Specification Parameter
| Diesel forklift parameters | ||||
| Name | CPC20 | CPC30 | CPC50 | |
| Fuel type | Diesel | Diesel | Diesel | |
| Load capacity | kg | 2000 | 3000 | 5000 |
| Load center | mm | 500 | 500 | 500 |
| Lifting height | mm | 3000 | 3000 | 3000 |
| Fork size | mm | 1070*122*40 | 1070*125*40 | 1070*150*50 |
| Door frame angle | Deg. | 6/12 | 6/12 | 6/12 |
| Min turning radius | mm | 2220 | 2400 | 2680 |
| Ground clearance | mm | 120 | 135 | 135 |
| Height of overhead guard from ground | mm | 2140 | 2165 | 2210 |
| Front overhang | mm | 448 | 495 | 495 |
| Max travel speed fully loaded | km/h | 19 | 19 | 22 |
| Max lifting speed with full load | mm/s | 550 | 480 | 330 |
| Max traction fully loaded | KN | 12.3 | 13.5 | 18.5 |
| Max climb angle | % | 20 | 20 | 20 |
| Full length with forks | mm | 3523 | 3820 | 4195 |
| Full length without forks | mm | 2453 | 2750 | 2975 |
| Full width | mm | 1160 | 1225 | 1380 |
| Overall lifting height of mast | mm | 4220 | 4265 | 4250 |
| Door frame closed height | mm | 2060 | 2060 | 2185 |
| Front tire | 7.00-12-12PR | 28x9-15-12PR | 300-15-18PR | |
| Rear tire | 6.00-9-10PR | 6.50-10-10PR | 700-12-10PR | |
| Wheelbase | mm | 1600 | 1700 | 1960 |
| Wheel distance | mm | 970/970 | 1000/970 | 1000/970 |
| Total Weight | kg | 4030 | 4350 | 5300 |
| Battery | V/Ah | 12/80 | 12/80 | 12/80 |
| Engine model | Xinchai4D27G31 | Xinchai4D27G31 | Xinchai4D32G31 | |
| Rated power | kw/r.p.m | 36.8 | 36.8 | 48 |
| Gearbox | Mechanical/Hydraulic | Mechanical/Hydraulic | Mechanical/Hydraulic | |
| Work power | Mpa | 18.5 | 18.5 | 18.5 |
Main Features
.High strength 20 mn silicon steel door frame-----with high tensile strength,enough toughness, good weldability and formability.
.All-robot welding-----looks very nice and consistent.
.Wide view mast-----better view ensures operation safety
.New adjusting mechanism of steering wheel-----with ergonomic design,making driving more comfortable and convenient.
.Reliable special meters-----reasonable structure and better view,Alarm indicator lights to make monitoring of the truck condition easier.
.Environment-friendly design and easy maintenance-----Euro V emission standards are more environmentally friendly, the hood opening angle is increased to facilitate maintenance.
.All-robot welding-----looks very nice and consistent.
.Wide view mast-----better view ensures operation safety
.New adjusting mechanism of steering wheel-----with ergonomic design,making driving more comfortable and convenient.
.Reliable special meters-----reasonable structure and better view,Alarm indicator lights to make monitoring of the truck condition easier.
.Environment-friendly design and easy maintenance-----Euro V emission standards are more environmentally friendly, the hood opening angle is increased to facilitate maintenance.
